LEAD TIME IS BETEEN 2 TO 3 WEEKS ON AVERAGE
ALL MOLDS ARE MADE TO ORDER. WE DO NOT GENERALLY KEEP STOCK ON HAND.
PICTURES SHOWN MAY NOT REPRESENT THE MODEL YOU'RE LOOKING FOR. THEY ARE ONLY INTENDED TO ILLUSTRATE THE MOLD STYLES THAT ARE AVAILABLE.
-MOLD FEATURES
BLOCKED OUT CONTROLS (EJECTION PORT, SIGHT CHANNEL, MAGAZINE RELEASE, SLIDE LOCK LEVERS, SAFETIES, AND TRIGGER GUARD)
ADJUSTABLE RETENTION BUILT IN – MEANT FOR 0.25” RUBBER WASHERS
15 DEGREE DRAFT CUT FOR EASIER MOLD REMOVAL
-MOLD STYLES

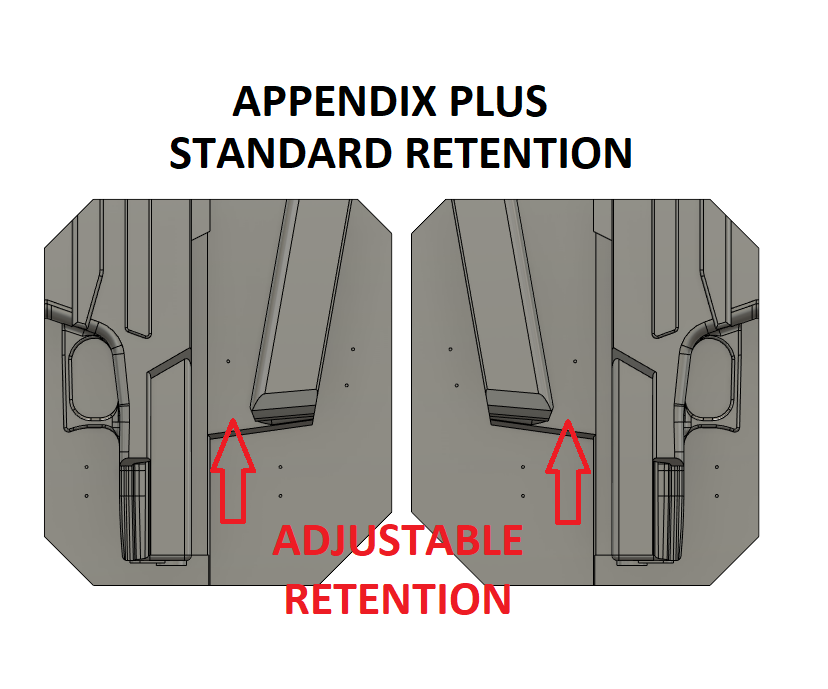

STANDARD RETENTION - THE ADJUSTABLE RETENTION FOR THE MAGAZINE IS BETWEEN THE GUN AND THE MAGAZINE - SEE PICTURES.

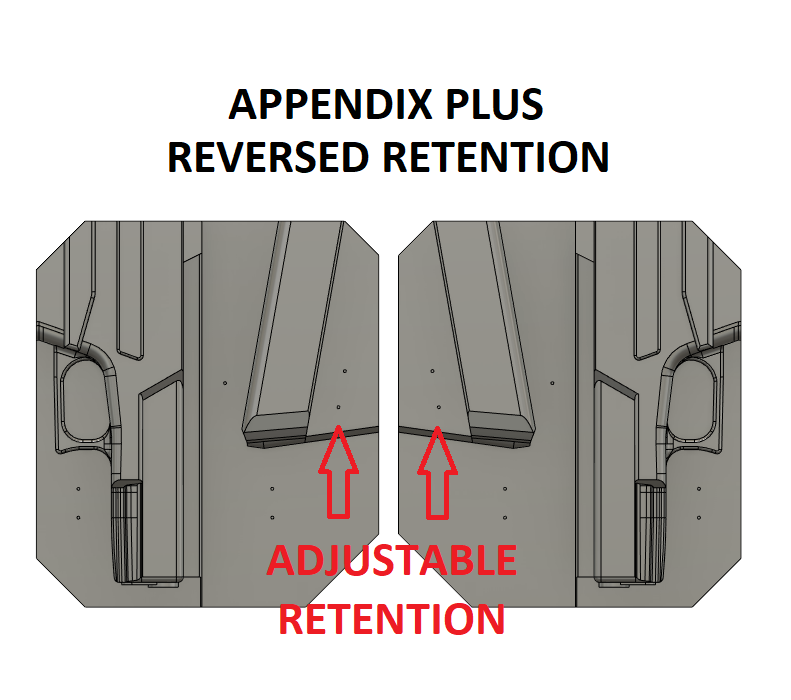

REVERSED RETENTION - THE ADJUSTABLE RETENTION FOR THE MAGAZINE IS ON THE OUTSIDE PORTION OF THE MAGAZINE - SEE PICTURES.
BOTH STYLES PROVIDE ADJUSTABLE RETENTION FOR THE FIREARM AND DRILL INDICATORS SPACED AT 15MM APART FOR OVERHOOKS, MODWINGS, ETC.

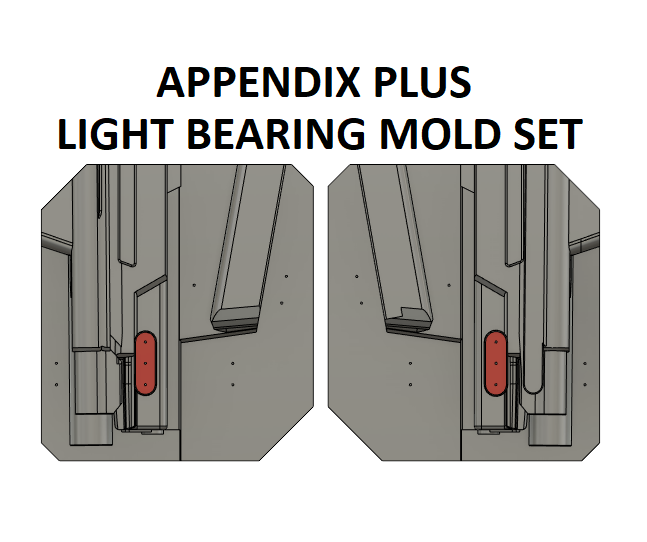

LIGHT BEARING MODELS WILL HAVE OVERHOOK BLOCKING - SHOWN IN RED IN THE PICTURES - UNLESS OTHERWISE REQUESTED.

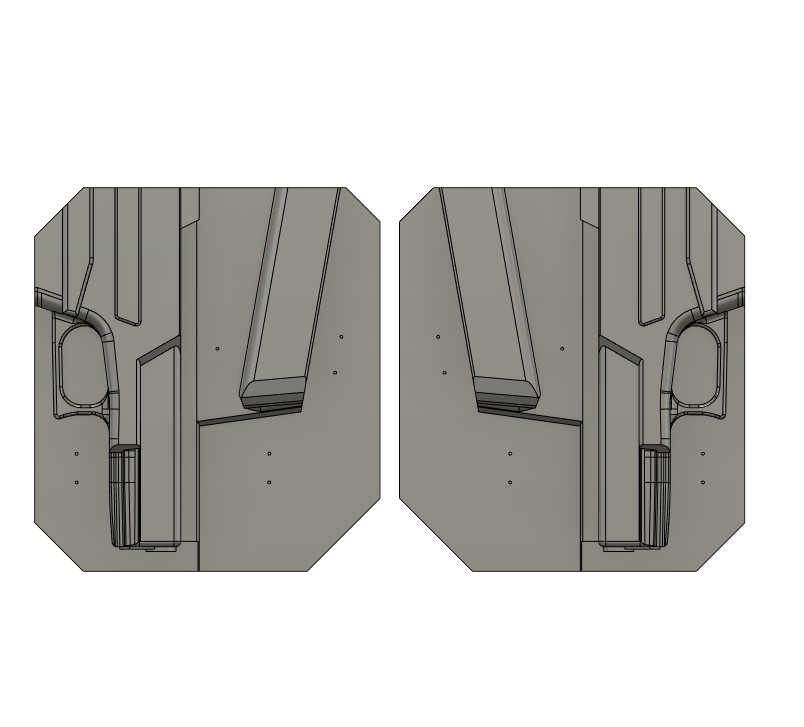

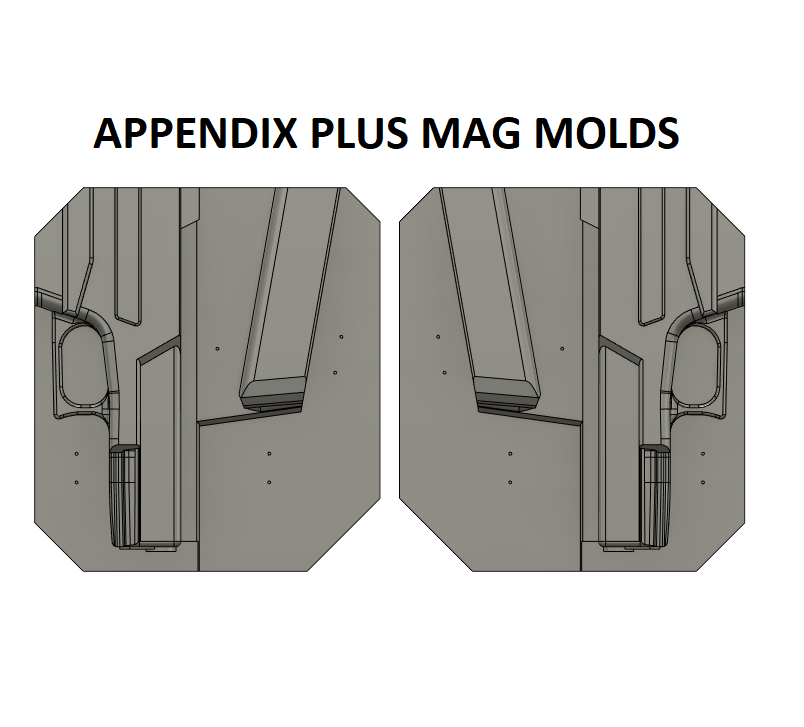

THESE MOLDS SETS ARE 2 PART MOLDS - A FRONT AND BACK - THAT NEED TO BE FASTENED TOGETHER WITH EYELETS AND/OR SCREWS. ONCE COMPLETED THE HOLSTER CAN BE HEATED AND BENT TO CURVE TO THE WEARER. FOR BETTER CONCEALMENT.

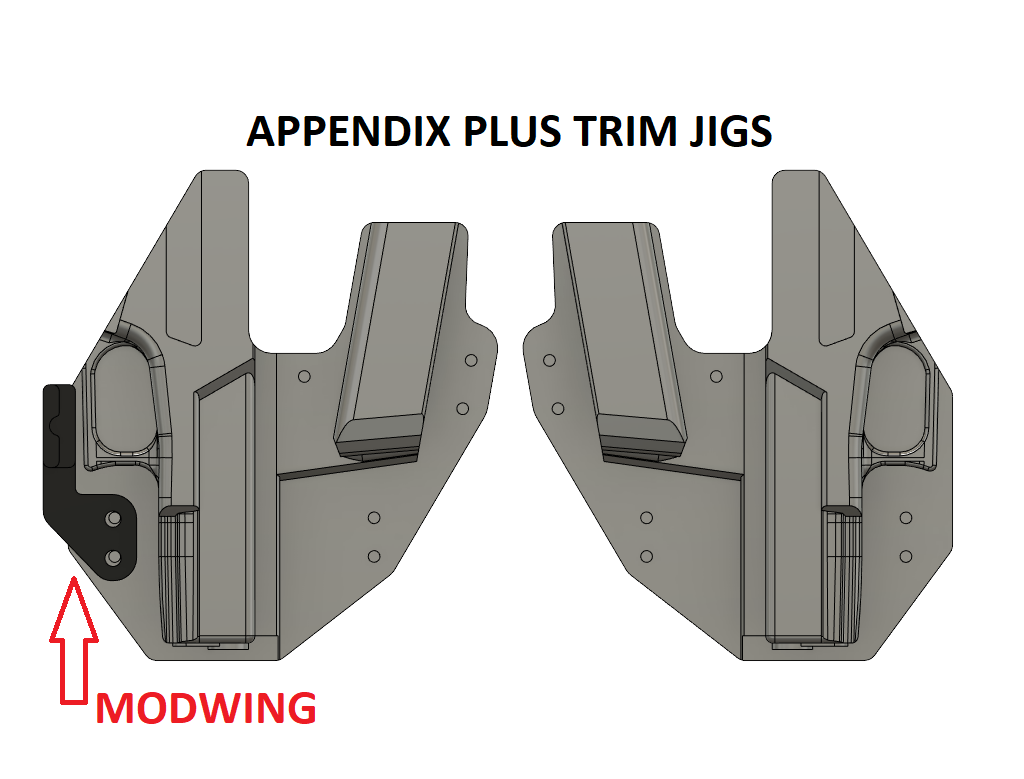

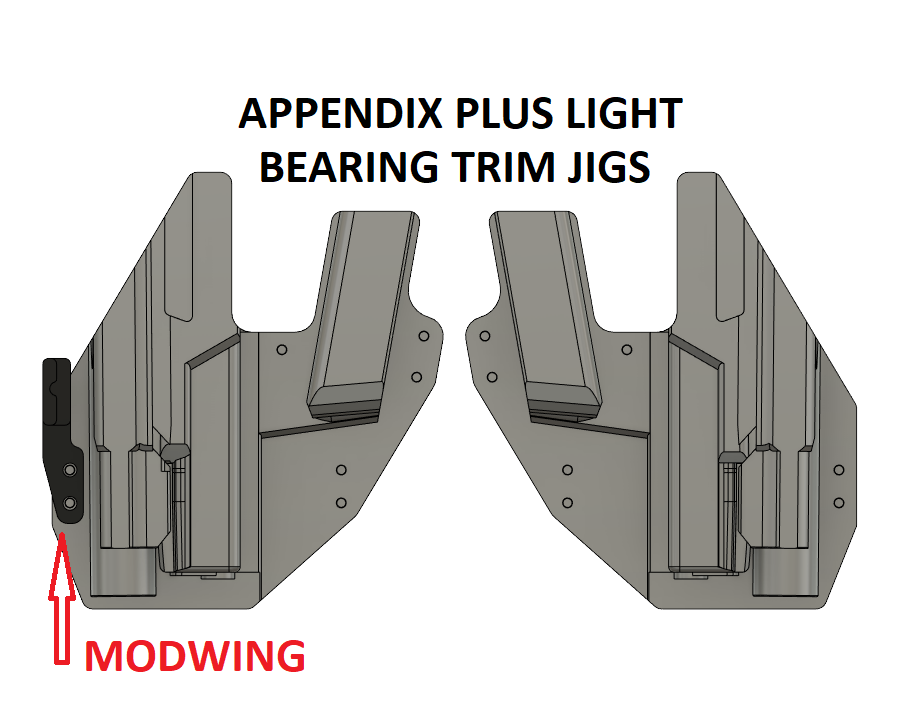

-TRIMMING JIGS
CNC MACHINED FROM HDPE WITH 0.3"-0.4" SIDEWALLS FOR USE WITH A BEARING TRIM BIT AND ROUTER SET UP.
TRIM JIGS FOR THESE MOLD SETS ARE AMBIDEXTROUS.
